Classification and Professional Analysis of Automobile Seat Slide Rails by Structural Type

I. Core Classification (by Structural Form & Adjustment Method)

1. Single Rail

Structural Features

• Composed of one fixed rail + sliding seat. The rail has a C-shaped / channel-shaped cross-section, and the sliding seat cooperates with the rail through rollers or sliders, only realizing one-way forward and backward adjustment of the seat.
• Ultra-simplified structure with few parts (usually including rail, slider, locking mechanism, handle) and small space occupation (thickness ≤ 30mm).

Technical Parameters

• Adjustment stroke: 50-150mm (commonly used in small cars);
• Load-bearing capacity: ≤ 250kg (suitable for single-person seats);
• Locking method: Tooth-type locking (locking tooth spacing 2-5mm, medium adjustment precision).

Applicable Scenarios

• Rear seats of mini-cars and small cars (such as Wuling Hongguang, Toyota Yaris), co-driver seats of commercial vehicles, or low-cost models with simple adjustment function requirements.
• Export Notes: Focus on cost-effectiveness, suitable for economical models in emerging markets such as Southeast Asia and Africa. Emphasize "lightweight (single set weight ≤ 1.2kg) and easy installation".

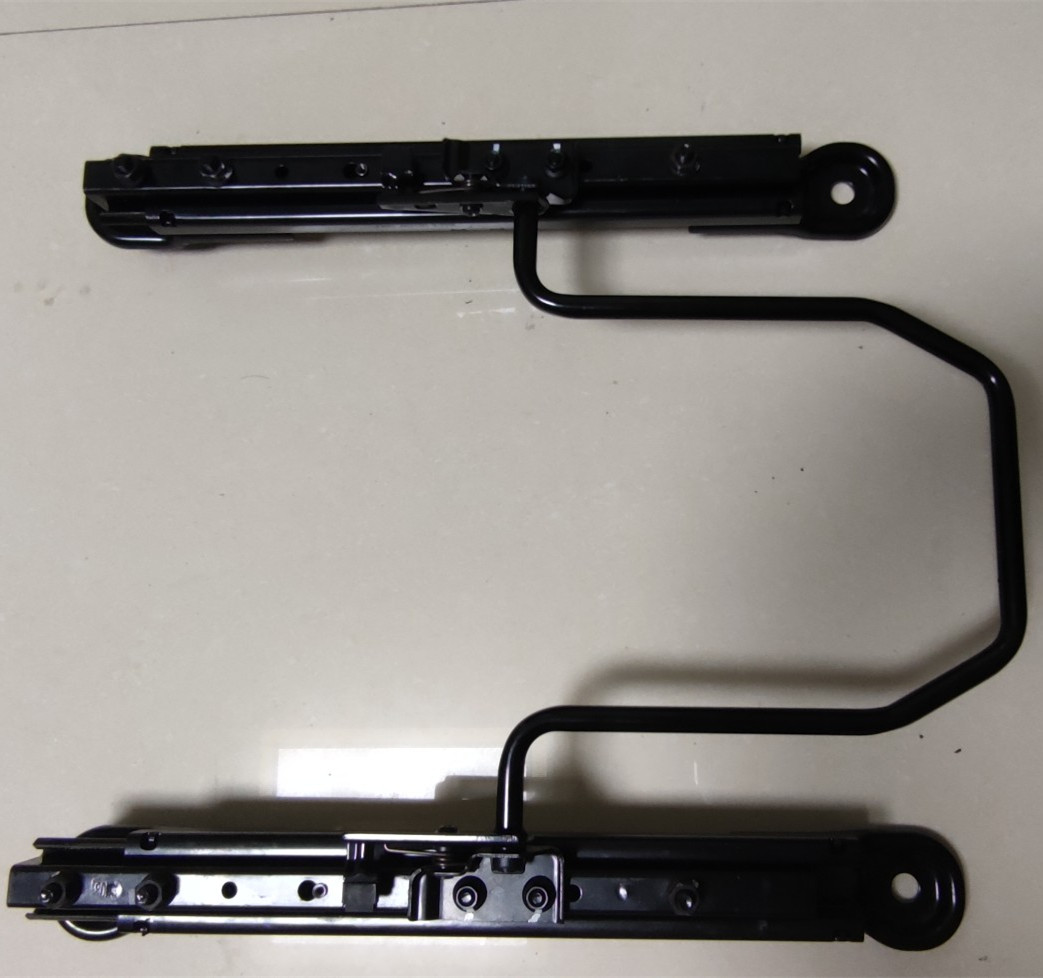

2. Dual Rail

Structural Features

• Two rails arranged in parallel (left-right symmetry), with sliding seats connected by crossbeams, forming a stable "dual-support" structure, which can realize forward and backward adjustment + seat level maintenance.
• The rail cross-section is mostly U-shaped or box-shaped, with built-in roller sets (4-6), low movement resistance, and strong synchronization of the locking mechanism (left-right locking error ≤ 0.5mm).

Technical Parameters

• Adjustment stroke: 100-300mm (mainstream for family cars);
• Load-bearing capacity: 250-400kg (suitable for front driver/co-driver);
• Locking method: Multi-point tooth-type locking (number of locking teeth ≥ 15, high safety).

Applicable Scenarios

• Front seats of compact cars, mid-size cars, and SUVs (such as Volkswagen Lavida, Honda CR-V). It is currently the most widely used structural form in the market (accounting for about 70%).
• Export Notes: Must meet safety standards in different regions (such as EU ECE R17, US FMVSS 207). Highlight "synchronous locking reliability and fatigue resistance (≥ 50,000 adjustments without failure)", suitable for mainstream global family car platforms.

3. Four Rail

Structural Features

• Composed of two sets of dual rails stacked (upper and lower layers). The lower layer realizes forward and backward adjustment, and the upper layer realizes two-way adjustment of the seat (forward/backward + up/down), and some with tilt angle adjustment.
• The upper rail is connected to the lower layer through a lifting mechanism (coil spring or hydraulic rod), with a complex structure and many parts (including rail, slider, lifting mechanism, dual locking system).

Technical Parameters

• Adjustment stroke: 150-350mm forward/backward, 30-80mm up/down;
• Load-bearing capacity: 300-450kg (suitable for mid-to-high-end models);
• Adjustment method: Manual/electric (electric version includes motor, reducer, position sensor).

Applicable Scenarios

• Front seats of mid-to-high-end sedans and luxury SUVs (such as BMW 5 Series, Mercedes-Benz GLC), focusing on "multi-dimensional comfort adjustment".
• Export Notes: Electric four rails must comply with electrical safety standards (such as ISO 6469). Emphasize "adjustment smoothness (noise ≤ 55dB) and position accuracy (error ≤ 2mm)", suitable for high-end vehicle markets in Europe, America, Japan and South Korea, and can be matched with seat memory function.

4. Telescopic Rail

Structural Features

• Adopts nested multi-section rails (2-3 sections), which can realize ultra-long stroke adjustment. The sliding seat extends through the nested structure, and the maximum stroke can reach 1.5-2 times that of conventional dual rails.
• The rail material is mostly high-strength alloy steel (tensile strength ≥ 1000MPa), with built-in reinforcing ribs to ensure load-bearing stability under ultra-long stroke.

Technical Parameters

• Adjustment stroke: 300-500mm (special for MPV/commercial vehicles);
• Load-bearing capacity: 350-500kg (suitable for multi-person seats);
• Locking method: Segmented locking (each section of stroke is independently locked to prevent accidental sliding).

Applicable Scenarios

• Second-row seats of MPVs, commercial vehicles, and RVs (such as Buick GL8, Toyota Alphard), which can realize large forward/backward movement of seats to expand interior space.
• Export Notes: Focus on the North American and Southeast Asian commercial vehicle markets. Emphasize "ultra-long stroke and high-strength structure (impact resistance meets FMVSS 208)", and can be matched with seat rotation function.

5. Side-Slide Rail

Structural Features

• The rail is arranged horizontally, and the sliding seat can realize left-right lateral adjustment of the seat (adjustment range 50-100mm), usually used in combination with forward and backward adjustment rails (forming "three-dimensional adjustment").
• Special structure, need to be equipped with lateral locking mechanism and guiding device to prevent lateral deviation. The rail material is mostly stainless steel (corrosion resistance).

Technical Parameters

• Lateral adjustment stroke: 50-100mm;
• Load-bearing capacity: 250-350kg;
• Applicable vehicle models: Compact high-end cars with seat width ≤ 600mm.

Applicable Scenarios

• Front seats of high-end sedans and coupes (such as Audi A8, Porsche 911), facilitating the driver to get on and off the car and adjust the lateral distance between the seat and the steering wheel.
• Export Notes: Niche high-end market. Emphasize "lateral locking reliability and corrosion resistance (salt spray test ≥ 500 hours)", suitable for European and American luxury car brands.

6. Electric Adjustment Rail

Structural Features

• Based on dual-rail/four-rail structure, integrated with motor (DC permanent magnet motor), reducer (planetary gear reducer), and position sensor (Hall sensor), realizing electric adjustment (multi-dimensional such as forward/backward, up/down, tilt).
• The core component is the adjustment module, which supports precise positioning (error ≤ 1mm), and some have memory function (storing 3-5 sets of seat positions).

Technical Parameters

• Motor power: 10-30W;
• Adjustment speed: 5-10mm/s;
• Working voltage: 12V (passenger cars)/24V (commercial vehicles).

Applicable Scenarios

• Mid-to-high-end sedans, luxury SUVs, and new energy vehicles (such as Tesla Model 3, BYD Han), focusing on "intelligence and comfort".
• Export Notes: Must comply with national electromagnetic compatibility standards (such as EU EMC 2014/30/EU). Emphasize "low power consumption (standby current ≤ 5mA), mute effect (operating noise ≤ 50dB), and intelligent adaptation (supporting vehicle-machine interconnection)". It is currently the fastest-growing export category (annual growth rate of about 20%).

II. Classification Comparison Table (Core Dimensions)

III. Export Business Adaptation Suggestions

1. Model Selection by Target Market:Emerging markets (Southeast Asia, Africa): Promote single rails and manual dual rails, emphasizing "low cost and resistance to harsh environments (high temperature, high humidity)";
2. Mature markets (Europe, America, Japan, South Korea): Focus on dual rails and electric four rails, highlighting "safety certification, comfort, and intelligence";
3. Specialized markets (MPV/commercial vehicles): Focus on telescopic rails to meet the needs of commercial vehicles in North America and Southeast Asia.
4. Key Technical Compliance:Safety standards: EU ECE R17 (seat system safety), US FMVSS 207/208 (seat adjustment and collision protection);
5. Material requirements: European and American markets must comply with REACH regulations (banned hazardous substances), and electric models must pass EMC electromagnetic compatibility certification;
6. Performance testing: Provide fatigue resistance (≥ 50,000 times), salt spray corrosion (≥ 300 hours), and impact strength test reports.
7. Key Points for Customer Communication:Clarify vehicle adaptation: Provide rail installation dimensions (hole distance, width, thickness), load-bearing capacity, adjustment stroke and other parameters to match the customer's vehicle platform;
8. Highlight core differences: Emphasize "reliability and easy maintenance" for manual models, and "intelligence, mute effect, and energy saving" for electric models;
9. Additional services: Provide installation drawings, adaptation tool suggestions, and support customized adjustment strokes or locking methods.
