Key Issues to Note in the Installation and Maintenance of car Seat Rails

Key Issues to Note in the Installation and Maintenance of Automotive Seat Rails

5.2 Safety Performance Requirements

The safety performance requirements of seat rails cover multiple aspects such as strength, reliability, and durability, which are directly related to the life safety of occupants in the event of a vehicle collision.

Seat anchorage strength requirement is the most basic and important safety requirement. According to GB 15083-2019, seat anchorages must be able to withstand extreme loads without failure. Specific requirements include: applying a longitudinal horizontal deceleration or acceleration of not less than 20g to the seat anchorages for a duration of 30ms to simulate frontal or rear collision conditions; during or after the test, the seat frame, seat anchages, adjustment devices, displacement devices, and their locking mechanisms shall not fail; permanent deformation (including cracks) that will not increase the degree of injury during the collision is allowed; during the test, the locking mechanism shall not loosen; after the test, the displacement device that allows or facilitates occupant passage shall be in working condition and ensure at least one unlocking.

Backrest strength requirement ensures that the seat can protect occupants in the event of a rear impact. The standard requires applying a load of 530Nm torque relative to the seat R point to the upper part of the seat backrest frame in the longitudinal direction through a simulated human back dummy. During the test, the seat frame, seat anchages, adjustment devices, displacement devices, and their locking mechanisms shall not fail. For bench seats, if the support frame is partially or fully shared by more than one seat, these seats shall be tested simultaneously to ensure that the strength of the entire seat system meets the requirements.

Locking mechanism reliability requirement is the key to ensuring that the seat can be reliably fixed under normal use and accident conditions. The locking mechanism of seat rails must meet the following requirements: under normal use conditions, the locking mechanism should reliably lock the seat in any position without automatic unlocking; when bearing the specified load, the locking mechanism shall not loosen or fail; the unlocking operation should be convenient and reliable, and the unlocking force should be within the specified range (usually 15-55N); the locking mechanism should have an anti-misoperation function to avoid safety risks caused by misoperation.

Material and manufacturing quality requirements directly affect the safety performance of seat rails. The seat rail body and locking mechanism should be made of high-strength automotive steel plates with a tensile strength of generally over 500MPa, and some high-end products even reach 900MPa. The thickness of the steel plate is usually between 1.50-2.00mm, and the steel strength should be uniform, which is reflected in the stable strength of the steel coil at the head, middle, tail, and in the longitudinal, transverse, and 45-degree directions to ensure the stability of rail forming and subsequent welding and assembly quality. In addition, the outer surface of the part should be smooth, free of harmful sharp edges, burrs, scratches, cracks, and other defects; riveted and welded parts should be firm and reliable, without loosening, incomplete welding, air holes, or other phenomena.

5.3 Safety Specifications During Installation

The installation process of seat rails involves multiple safety risk points, and relevant safety specifications and operating procedures must be strictly followed to ensure the safety of installers and vehicles.

Personnel safety protection requirements are the primary consideration during installation. Installers must wear appropriate personal protective equipment (PPE), including safety helmets, protective goggles, cut-resistant gloves, safety shoes, etc. Especially when disassembling and installing seats, since the edges of the seat base may be sharp, cut-resistant gloves must be worn to prevent hand injuries. When using electric tools, insulating gloves and goggles are also required to avoid electric shock and splash injuries.

Vehicle safety measures are crucial during installation. Before starting installation, the vehicle must be ensured to be in a safe state: park the vehicle on a flat and solid ground, pull the handbrake and set wheel chocks to prevent vehicle movement; turn off the vehicle power supply and disconnect the negative electrode of the battery to avoid injury caused by accidental activation of the electrical system; set warning signs around the vehicle to prevent irrelevant personnel from entering the work area; for vehicles equipped with air suspension, the suspension system needs to be depressurized first to avoid accidental lifting during installation.

Electrical safety precautions are particularly important for the installation of electric seat rails. Before making electrical connections, confirm that the vehicle power supply has been turned off and the negative electrode of the battery has been disconnected. When connecting electrical wire harnesses, the following matters should be noted: check if the wire harness connector matches the vehicle body interface model, confirm the foolproof design direction before plugging to avoid pin bending or short circuit caused by forced insertion; check if the wire harness is damaged or aged, and replace it in a timely manner if there is a problem; ensure all electrical connections are firm and reliable to avoid faults caused by poor contact; after installation, conduct electrical system testing to ensure all functions are normal.

Operating specification requirements are the foundation for ensuring installation quality and safety. Installers must operate in strict accordance with operating procedures and shall not arbitrarily change the operation process or omit necessary steps. Specific requirements include: use appropriate tools for operation to avoid component damage caused by inappropriate tools; during disassembly and installation, pay attention to protecting the vehicle interior and other components to avoid scratches or damage; for bolts that require the use of a torque wrench, fasten them according to the specified torque value to ensure a firm connection; if any abnormal conditions are found during installation, stop operation immediately and find out the cause.

5.4 Safety Risk Control During Maintenance

The maintenance process of seat rails also involves various safety risks, and a sound risk control system needs to be established to ensure the safety of maintenance personnel and the smooth progress of maintenance work.

Mechanical injury risk control is the main safety consideration during maintenance. When maintaining seat rails, special attention should be paid to the following mechanical injury risks: when adjusting the seat, prevent fingers from being pinched between the rail and other components; during disassembly and installation, prevent foot injuries caused by falling components; when using tools, avoid injuries caused by tool slipping or rebounding; when handling springs or other elastic components, prevent impact injuries caused by sudden release. To control these risks, maintenance personnel should use appropriate protective equipment, maintain concentration during operation, and use auxiliary tools when necessary to reduce risks.

Electrical system maintenance safety is particularly important for the maintenance of electric seat rails. When maintaining the electrical system, the following safety specifications must be followed: before starting maintenance, disconnect the vehicle power supply, preferably the negative electrode of the battery; when inspecting the electrical system, use professional testing tools such as multimeters and test lights to avoid directly touching electrical components with hands; when handling high-voltage systems (such as hybrid or electric vehicles), follow special high-voltage safety operating procedures; when replacing electrical components, use products with the same specifications as the original components to avoid safety hazards caused by mismatched components; after maintenance, conduct electrical system testing to ensure all functions are normal and there are no electrical faults.

Chemical safety also needs special attention during maintenance. Chemical substances that may be encountered during seat rail maintenance include: grease, cleaning agents, rust removers, paint, etc. These chemical substances may cause harm to the human body, so corresponding protective measures need to be taken: wear protective gloves and masks when using chemical substances to avoid direct contact and inhalation; use chemical substances in a well-ventilated environment to avoid operation in confined spaces; store chemical substances in special containers away from fire and heat sources; wash hands thoroughly after use to avoid chemical residue; dispose of waste chemical substances in accordance with environmental protection requirements and do not discard them arbitrarily.

Maintenance environment safety is an important condition for the smooth progress of maintenance work. Maintenance work should be carried out in a suitable environment: choose a dry, clean, and well-ventilated workplace; ensure sufficient lighting in the work area to avoid operational errors caused by poor visibility; when using electric tools, ensure that power sockets and wires meet safety requirements to avoid electric shock risks; when performing welding or cutting operations, take fire prevention measures and equip fire-fighting equipment such as fire extinguishers; when working at heights, use appropriate climbing equipment and take fall prevention measures.

VI. Fault Diagnosis and Handling Strategies

6.1 Analysis of Common Fault Types

Seat rails may experience various faults during long-term use. Understanding common fault types and their causes is crucial for timely detecting and solving problems.

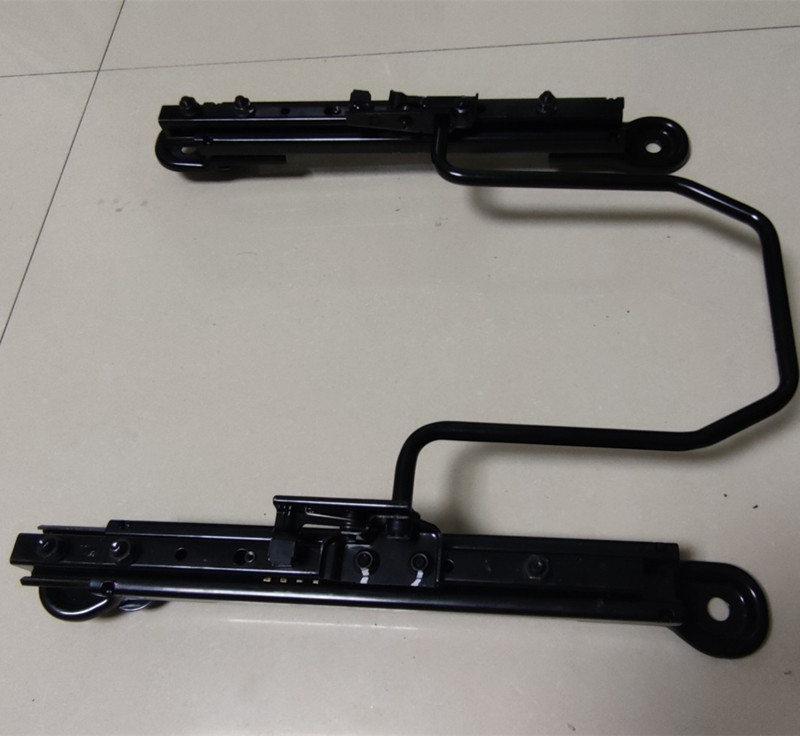

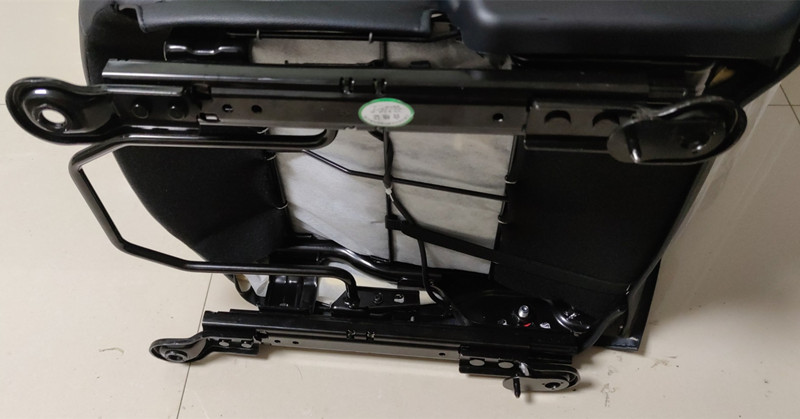

Mechanical jamming fault is the most common type of seat rail fault, mainly manifested as difficult seat movement, limited stroke, or excessive resistance during adjustment. The main causes of mechanical jamming include: rail rust, especially for vehicles often parked outdoors—rails are prone to moisture and rust when encountering rain and snow; debris entering the rail, such as dust, sand, small parts, etc., hindering the normal sliding of the seat; insufficient lubrication or deteriorated grease leading to increased frictional resistance; wear of mechanical components, such as balls and cages, resulting in unsmooth movement; rail deformation or damage caused by external impact or long-term use leading to structural deformation of the rail.

Electrical system faults are more common in electric seat rails, with various fault manifestations. Common electrical faults include: the seat cannot move at all, which may be due to a blown fuse, open circuit, or control module fault; the seat cannot move in a certain direction, which may be due to a fault in the corresponding motor, switch, or circuit; slow seat adjustment speed, which may be due to motor aging or unstable power supply voltage; abnormal noise during seat adjustment, which may be due to motor failure or mechanical component interference; failure of the seat memory function, which may be due to control module failure or memory circuit problems.

Abnormal noise fault not only affects use comfort but also may indicate serious safety problems. Common causes of abnormal noise in seat rails include: wear of mechanical components, such as balls, cages, gears, etc.—gaps generated after wear produce noise during movement; poor lubrication—lack of lubrication or deteriorated grease leads to increased friction between components and generates noise; loose components—loose fixing bolts or improperly installed components generate vibration noise during movement; foreign objects entering—dust, sand, and other foreign objects enter the rail and generate friction noise during movement; component damage—such as broken springs or cracked plastic parts, leading to abnormal noise during movement.

Locking function failure is a serious safety hazard that must be detected and handled in a timely manner. Manifestations of locking function failure include: the seat can still move in the locked state, which may be due to damage to the locking mechanism or fault of the adjustment lever; difficulty in unlocking or inability to unlock, which may be due to jamming of the unlocking mechanism or excessive unlocking force; automatic unlocking after locking, which may be due to failure of the locking mechanism spring or component wear; inability of the unlock lever to reset, which may be due to damage to the return spring or jamming of the mechanism. If these faults are not handled in a timely manner, the seat may move unexpectedly during driving, seriously affecting driving safety.

6.2 Fault Diagnosis Methods and Processes

Scientific fault diagnosis methods are the key to accurately identifying fault causes and taking effective repair measures.

Preliminary inspection and observation are the first steps in fault diagnosis, which initially determine the fault type through intuitive observation and simple testing. Inspection content includes: observing the appearance state of the seat to check for obvious damage, deformation, or looseness; operating the seat adjustment function to observe whether the movement is smooth and whether there is abnormal noise or resistance; checking the locking function of the seat to confirm reliable locking in various positions; checking the electrical system to observe whether relevant fault indicators are on the instrument panel; checking for foreign objects around the seat, such as fallen small parts, debris, etc.

Systematic diagnosis process is particularly important for the diagnosis of complex faults. Taking the electric seat system as an example, the standard diagnosis process includes: first, check the fuse to confirm the basic power supply of the electrical system is normal; then, check the seat switch and measure the conductivity of the switch in different positions with a multimeter; next, check the motor—supply power directly to the motor to observe whether it operates normally; finally, check the control module and circuit—read fault codes with diagnostic equipment and inspect circuit connections. For manual seat systems, the diagnosis process is relatively simple, mainly checking the state of mechanical components, lubrication conditions, and connection tightness.

The use of professional tools can significantly improve the accuracy and efficiency of fault diagnosis. Common diagnostic tools include: multimeters for measuring electrical parameters such as voltage, current, and resistance; diagnostic instruments for reading vehicle fault codes through the OBD interface; endoscopes for inspecting parts inside the rail that are difficult to observe directly; torque wrenches for checking bolt tightening torque; special measuring tools such as dial indicators and calipers for measuring component dimensions and gaps. When using these tools, operate in strict accordance with operating procedures to ensure the accuracy of measurement results.

Fault code interpretation is an important means of modern automotive fault diagnosis. When the vehicle's electronic control system detects a fault, it will store the corresponding fault code. By reading these codes with professional diagnostic equipment, the fault location and cause can be quickly located. For example, common fault codes in the seat system include: U0131 indicating a seat control module communication fault; B1000 indicating a seat position sensor
